W3001 W3002 LED Digital kontrolltemperatur mikrodator termostatbrytare termometer ny termostatregulator 12/24/110V/220V

W3001 W3002 Led Digital kontrolltemperatur mikrodator termostatbrytare termometer ny termostatregulator 12/24/110V/220V

• Description:

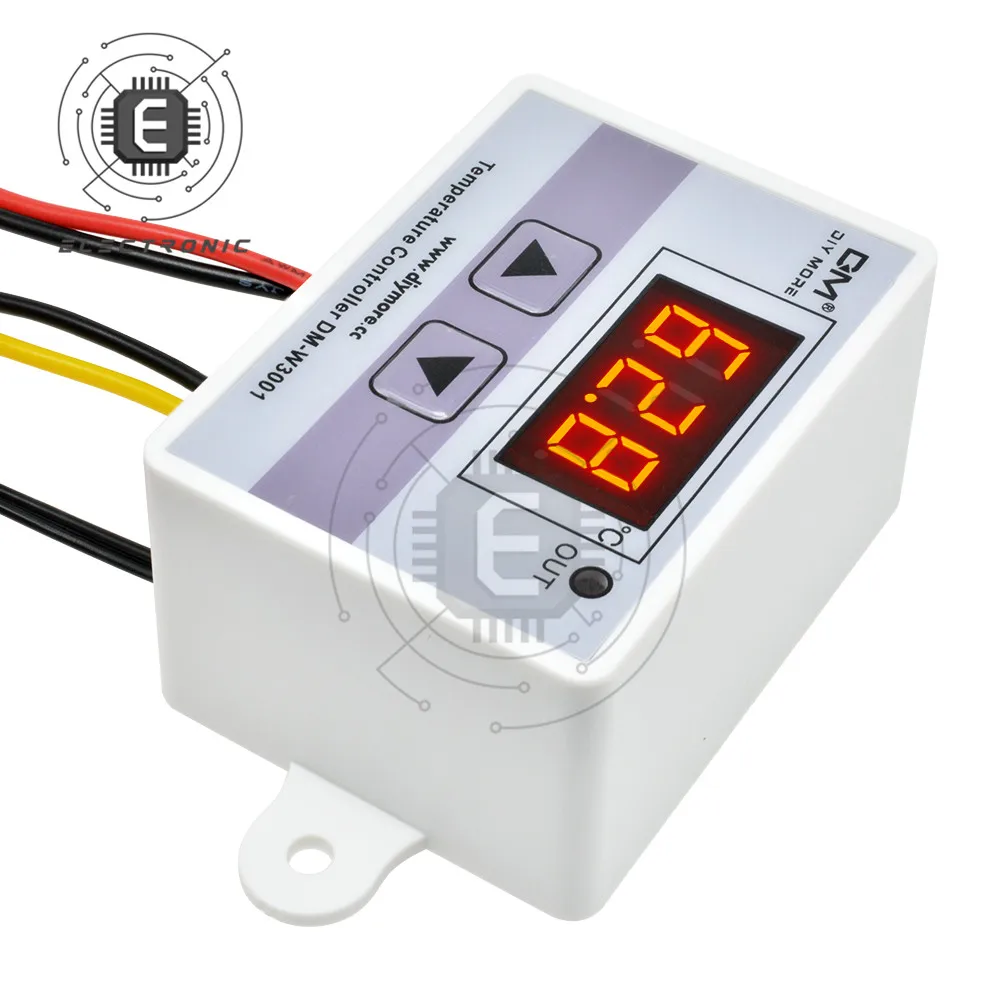

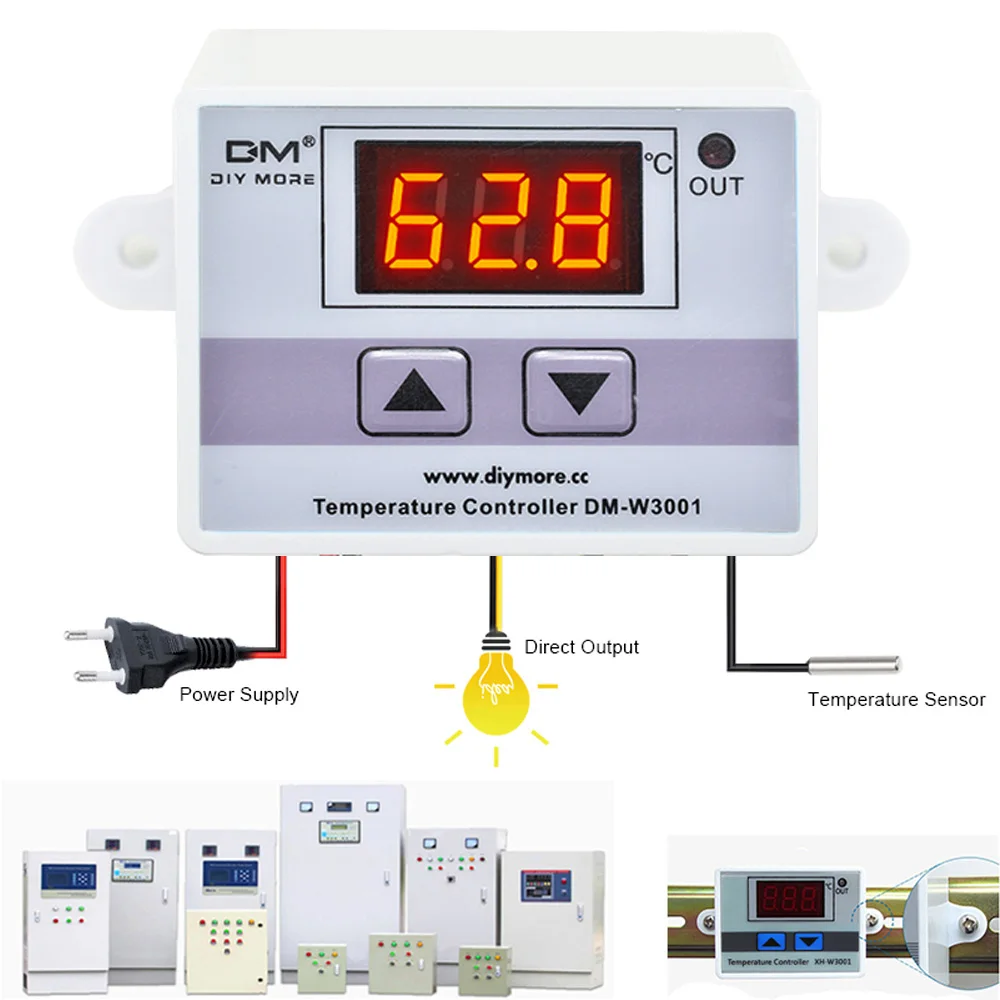

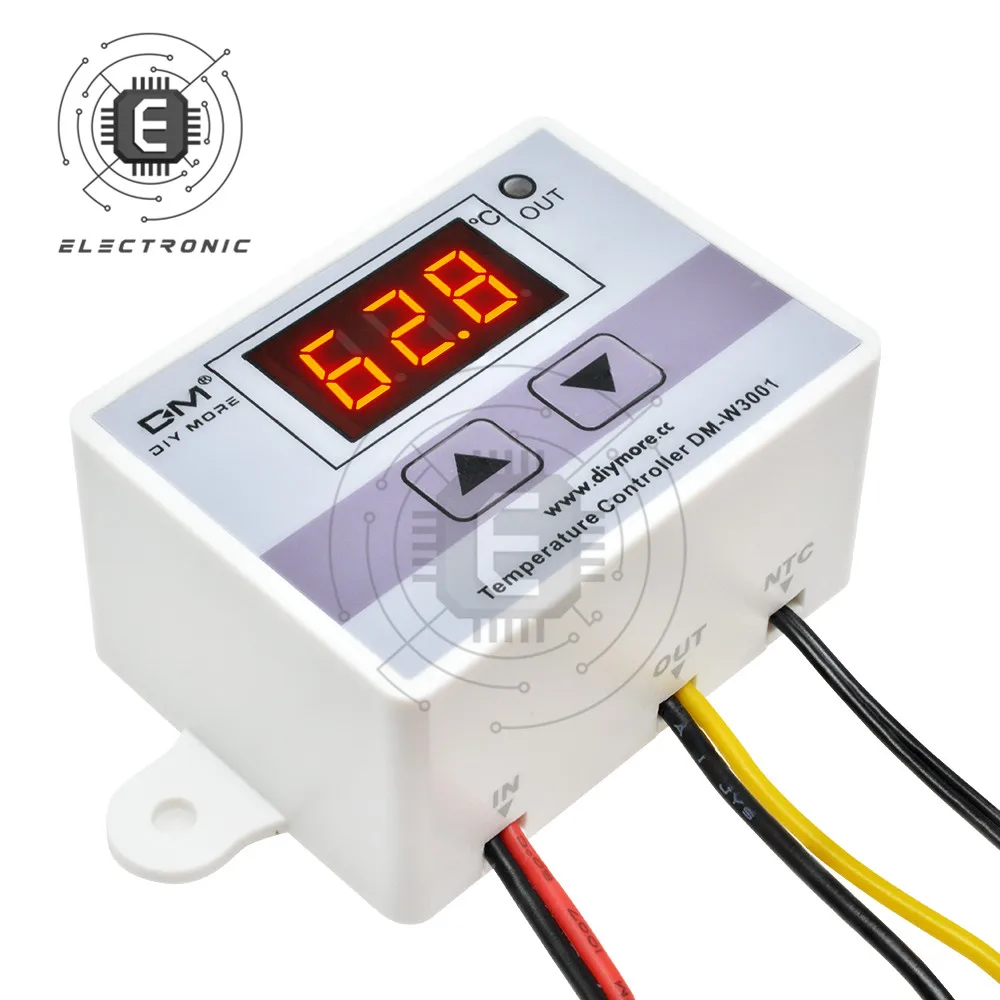

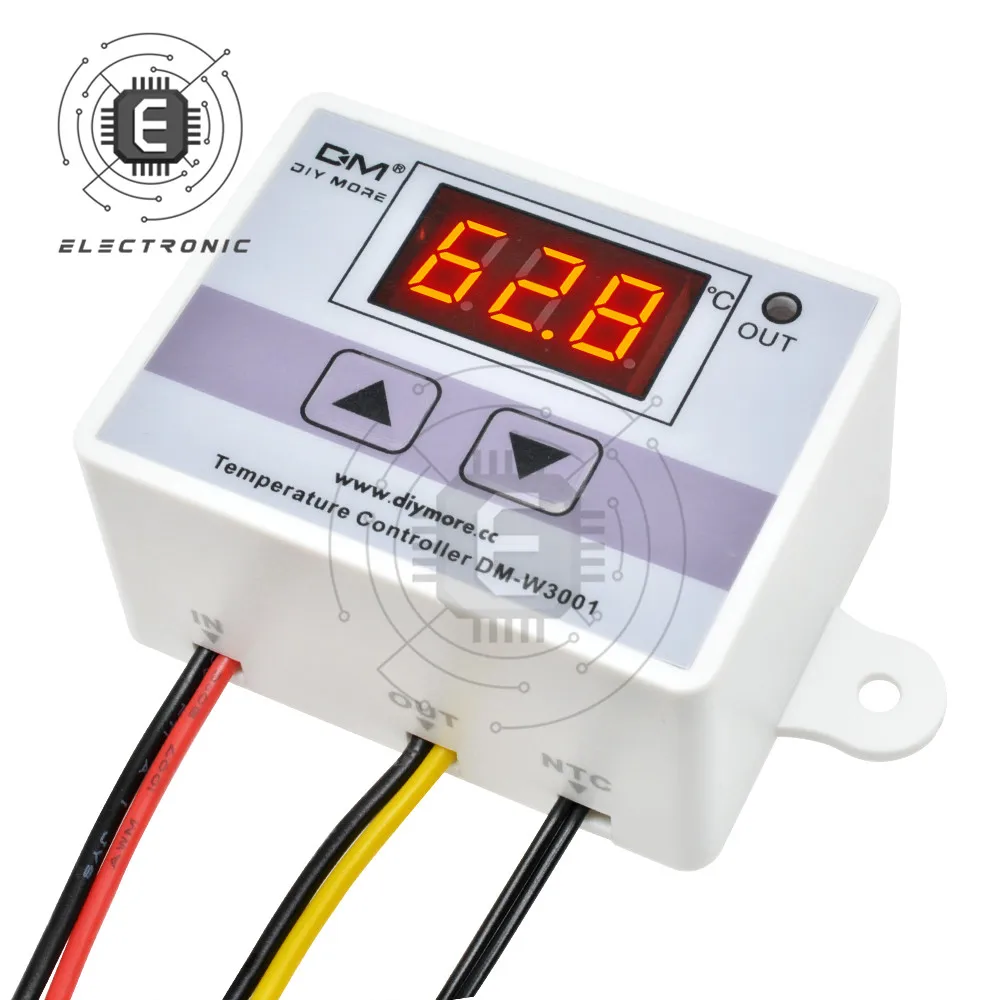

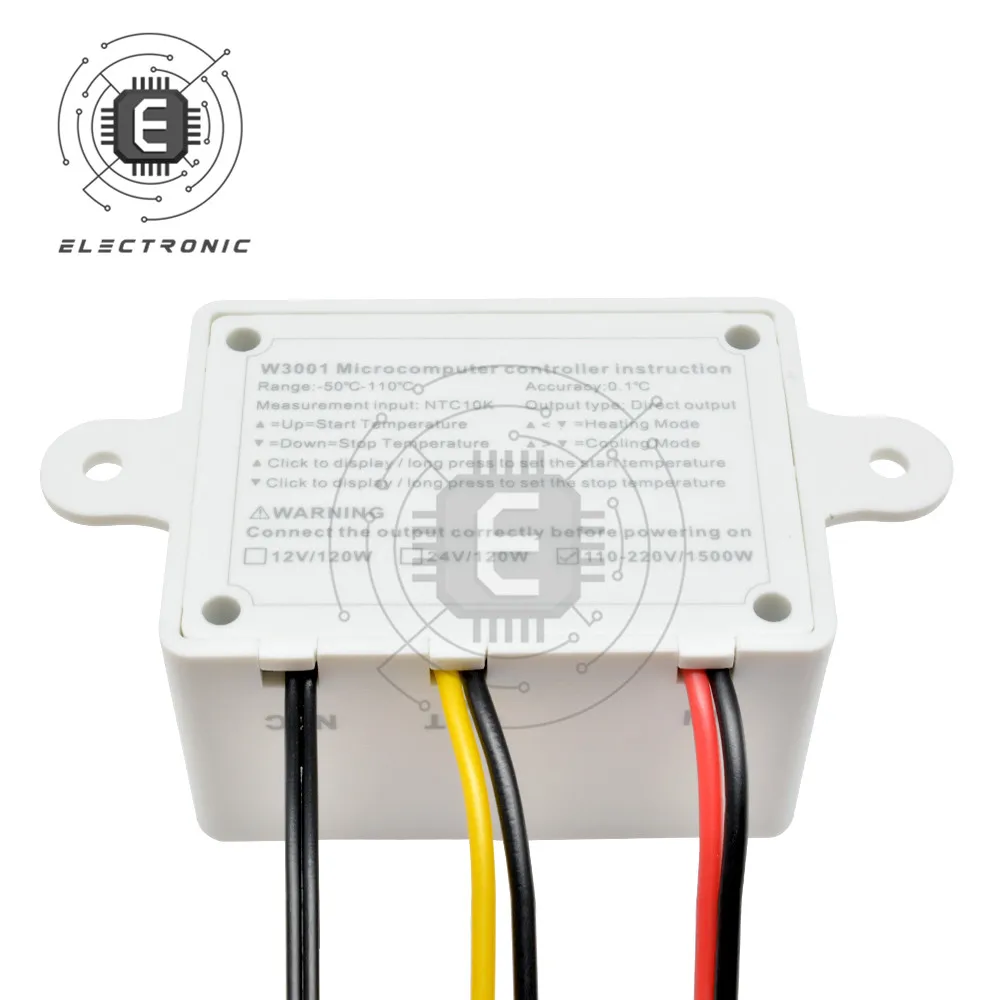

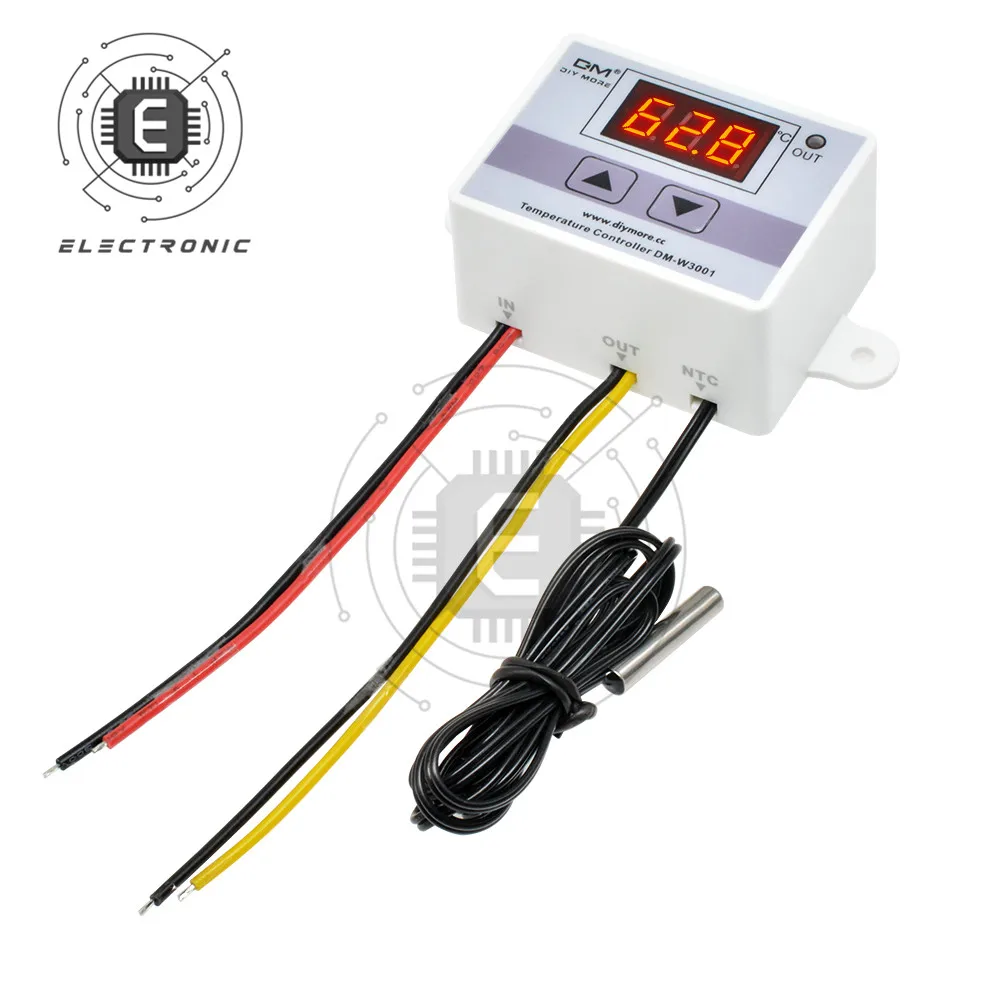

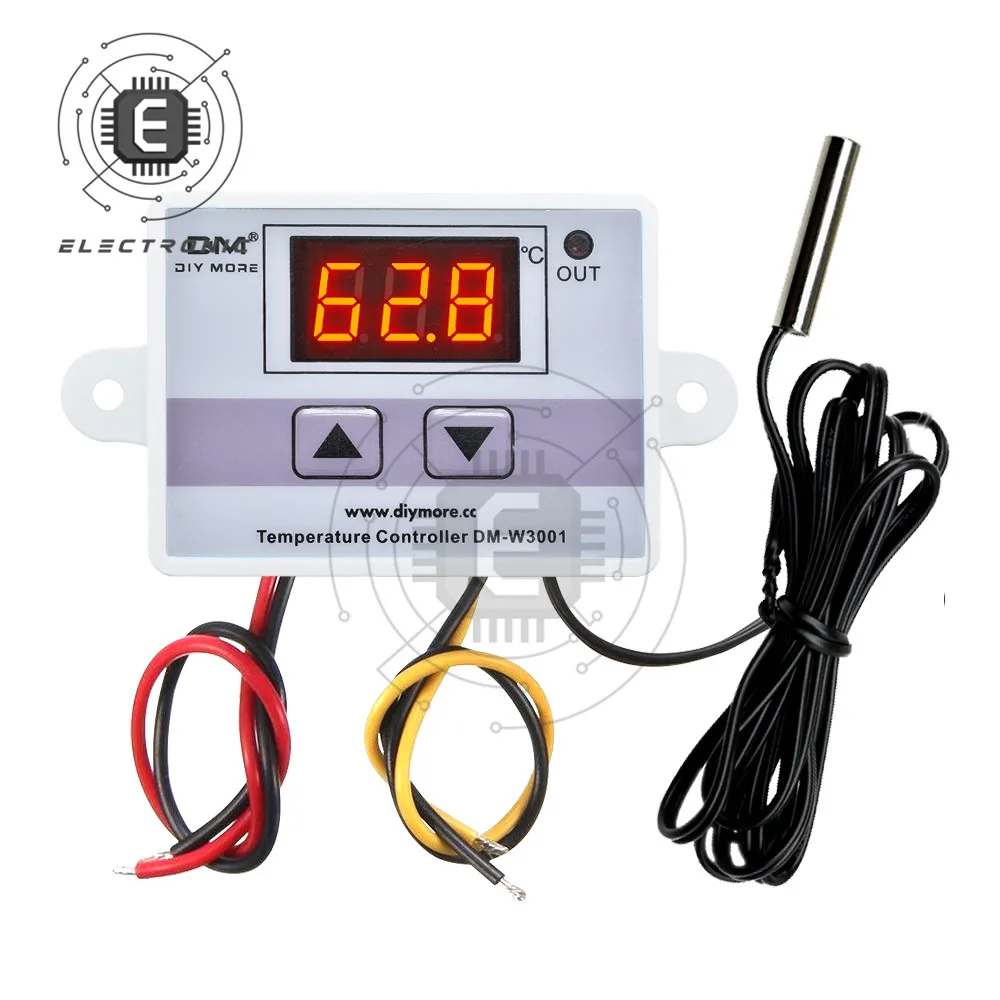

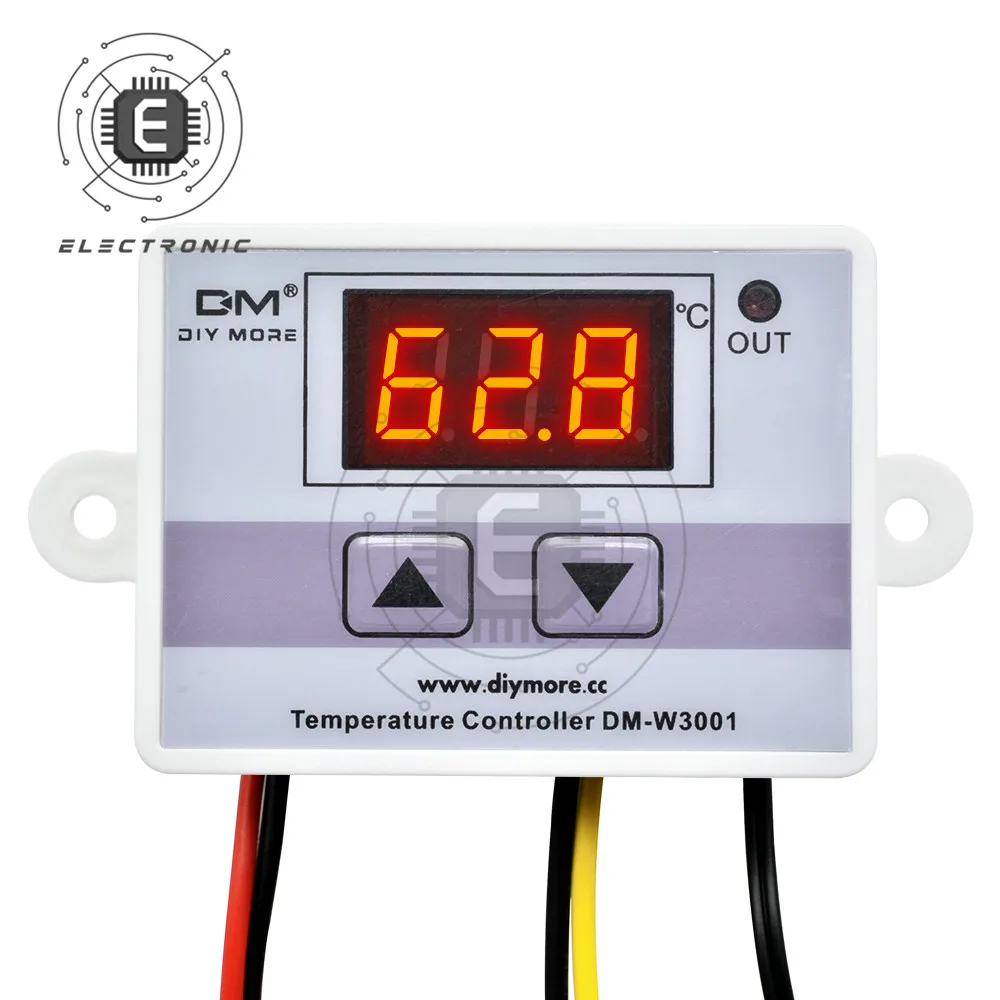

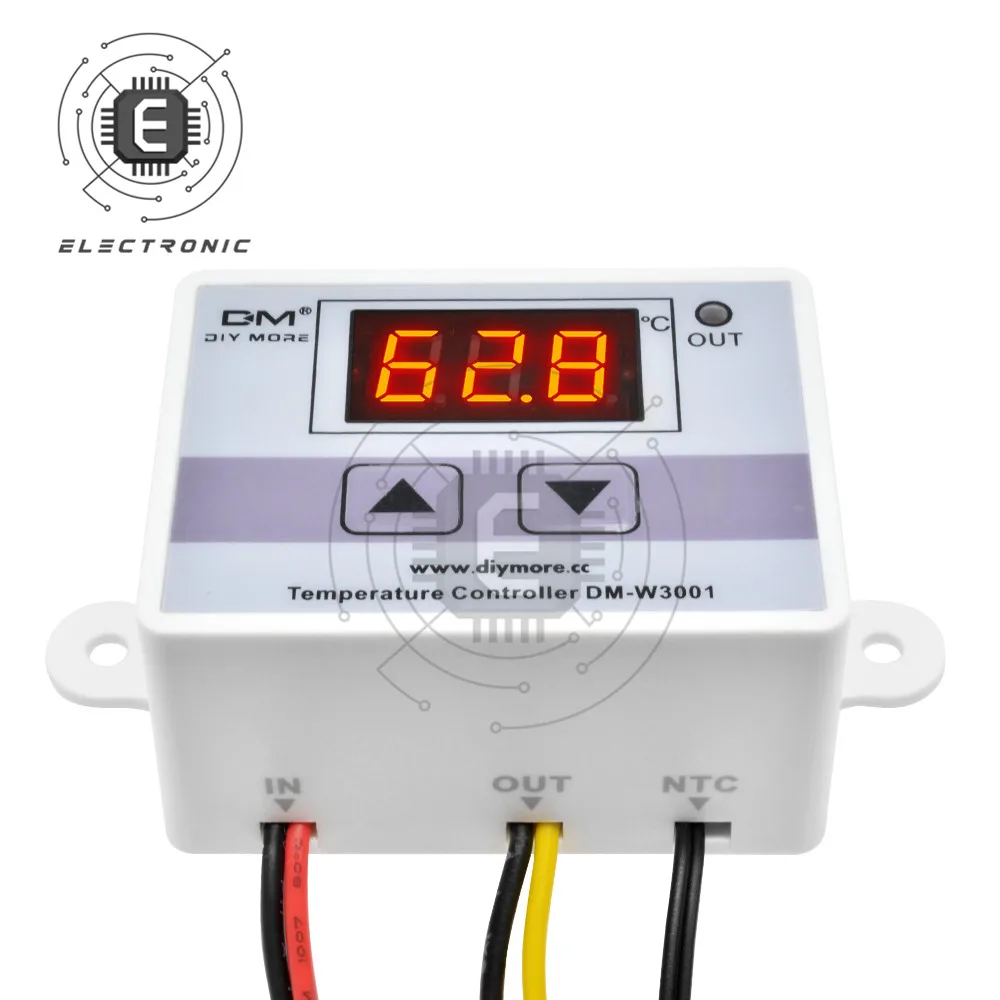

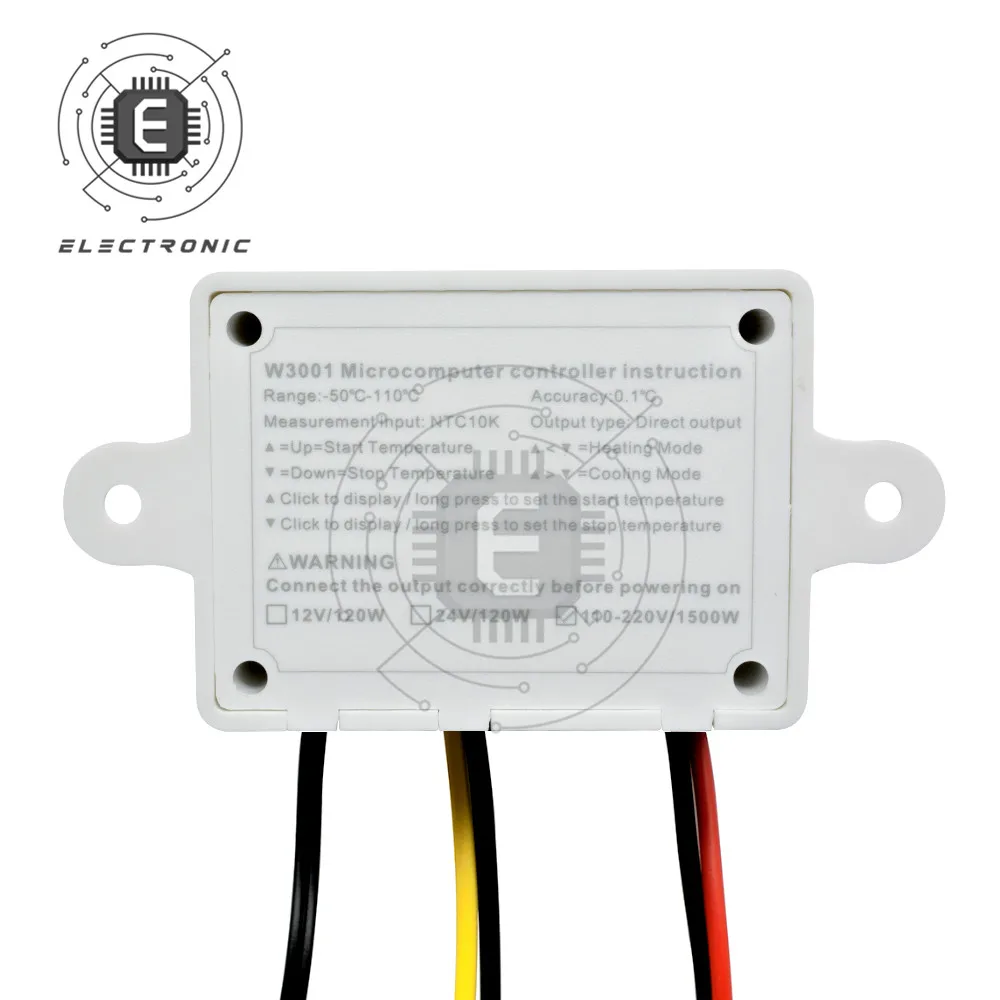

• W3001
• Specifications:
• Material: ABS
  Color: White
  Size(Length x Width x Height): about 5.5 x 3.8 x 3.2cm (2.17 x 1.50 x 1.26rdquo )
  Parameters
  Supply Voltage: DC 12V / 24V / AC 90~250V
  Temperature Measurement range: -50-110℃
  Temperature Control Range: -50-110℃
  Control Accuracy: 0.1℃
  Display Accuracy: 0.1℃
  Measuring Input: NTC10K Waterproof Probe L=1 Meter
  Output Type: Relay Output(Output Switch)
  Output Capacity: 10A
  Introduction to code and features:

  PO setting start temperature

  Press the Setup button to enter the internal menu. The default display is PO. Press the Setup button again to set the required startup temperature with the up and down buttons.

  P1 sets the stop temperature

  Press the setup button to enter the internal menu, the display is P0, switch to P1 by the up and down keys, press the setup button again, and set the required stop temperature by the up and down buttons.

  P2 set temperature correction

  In the same way, enter the internal menu, switch to P2 by pressing the up and down buttons, press the setting button again, and set the required calibration temperature by the up and down buttons. (Note: In the setting, if the detected temperature value is 0.5c larger than the actual temperature value, then the calibration temperature to be set is -0.5’C. If the detected value is 1’C smaller than the actual temperature value, the calibration temperature to be set is 1 ’C, detection temperature + corrected temperature = actual temperature.)

  P3 set delay start

  In the same way, enter the internal menu, switch to P3 by pressing the up and down buttons, press the setting button again, and set the required delay time by the up and down buttons, the unit is minute. (Note: Delay start is generally used for compressor refrigeration. If it is used in refrigerator freezer, this value needs to be set. According to compressor back pressure, the general setting is 3-6 points, if you are not using it for control or No delay

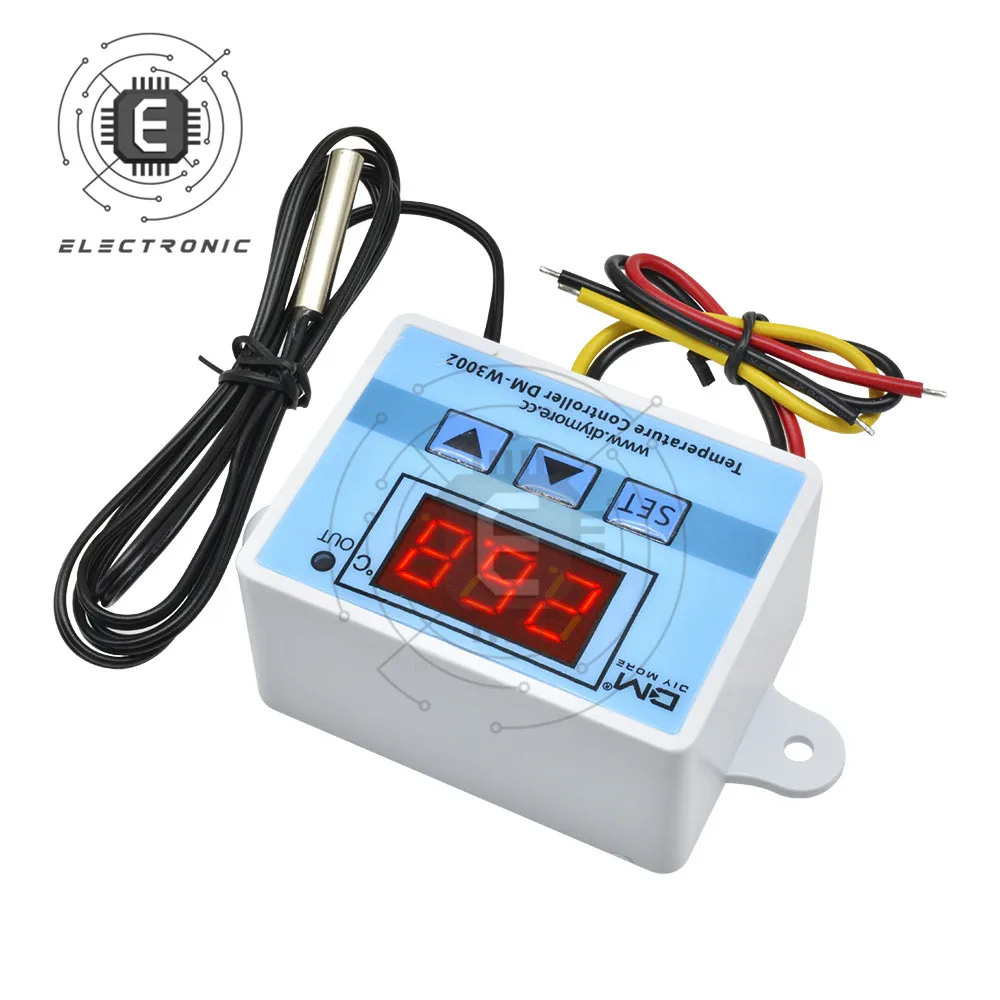

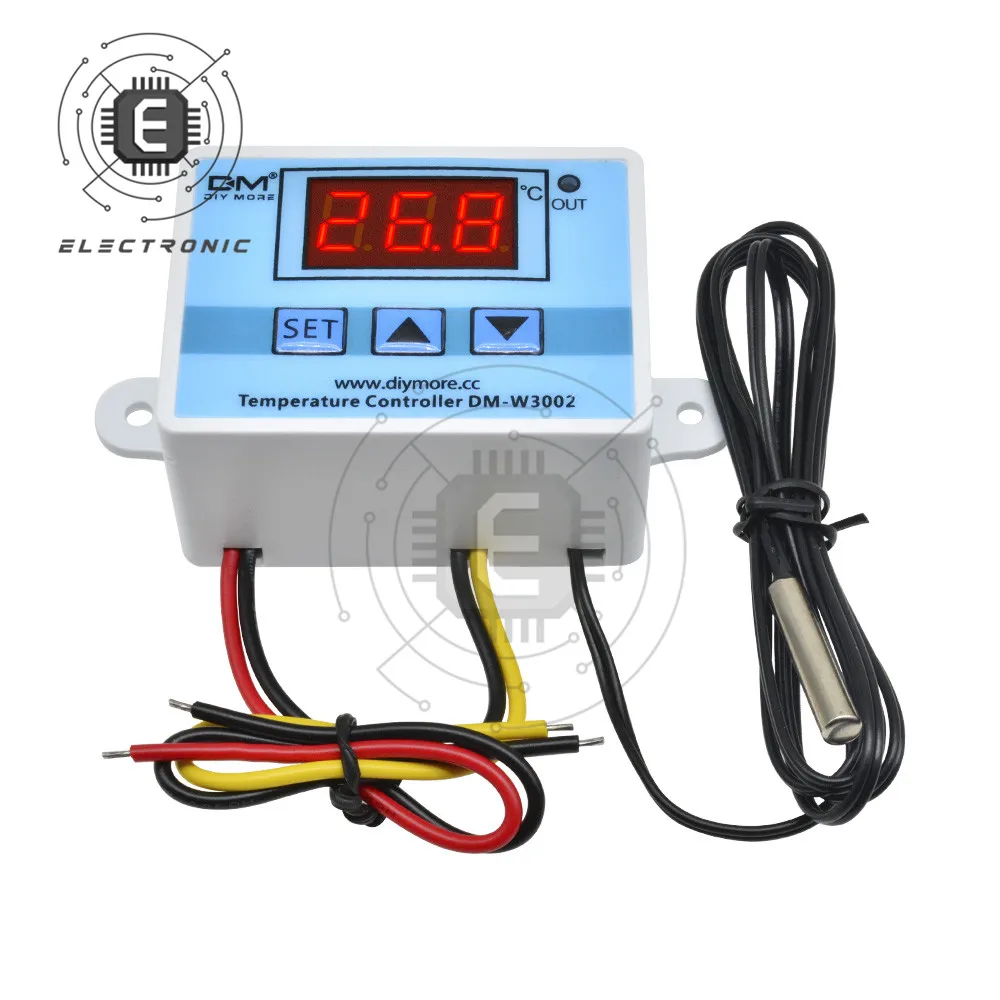

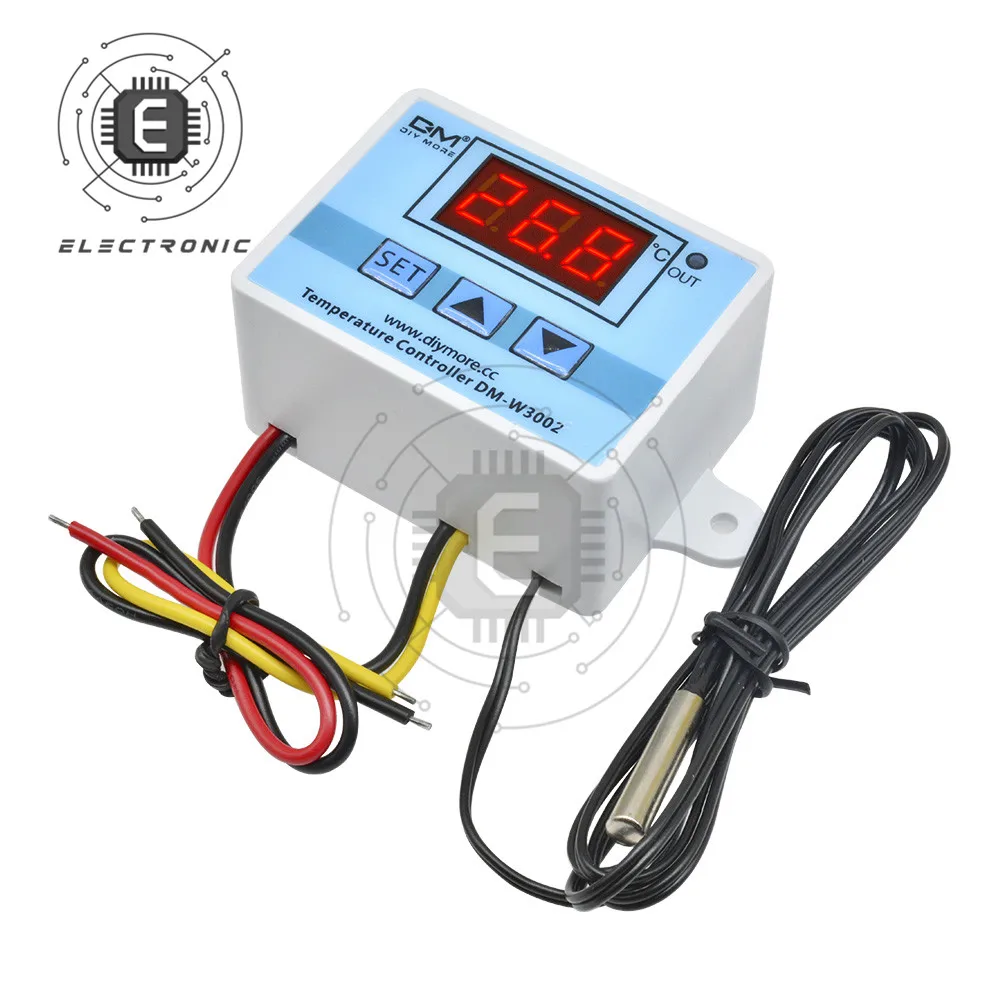

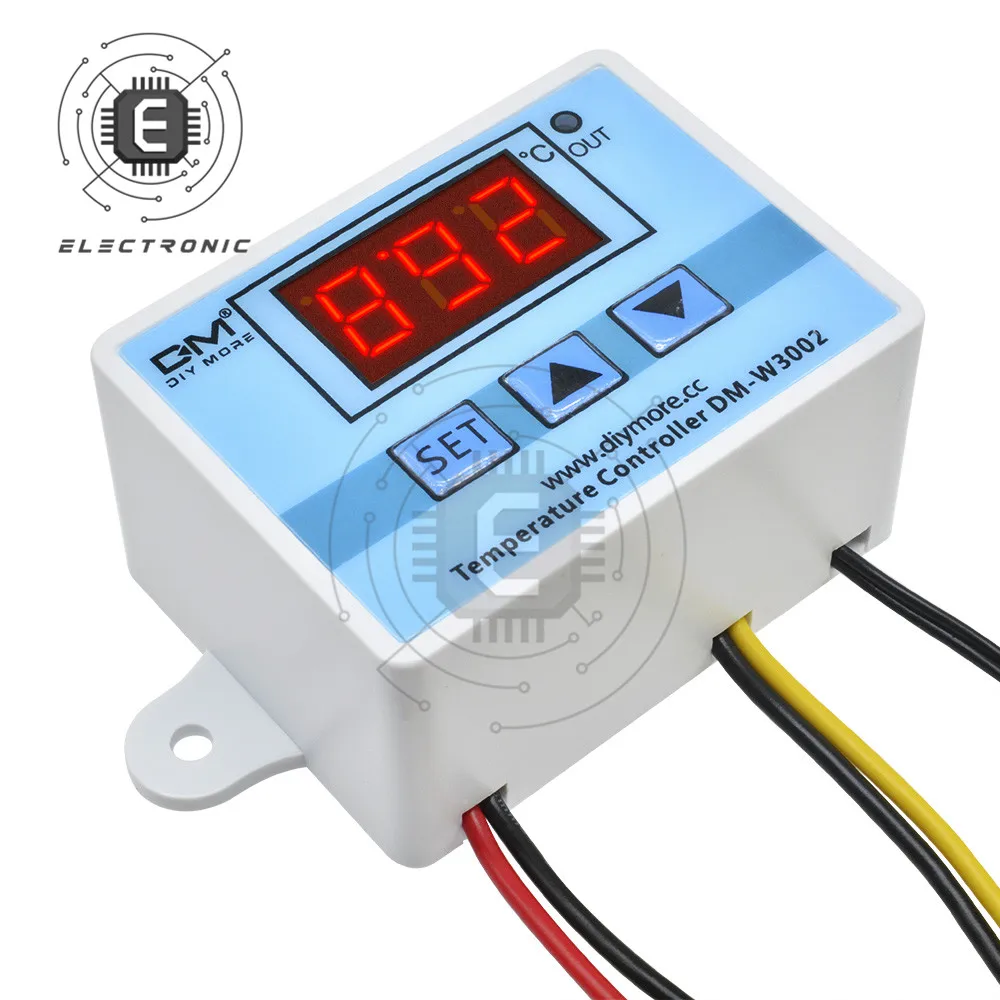

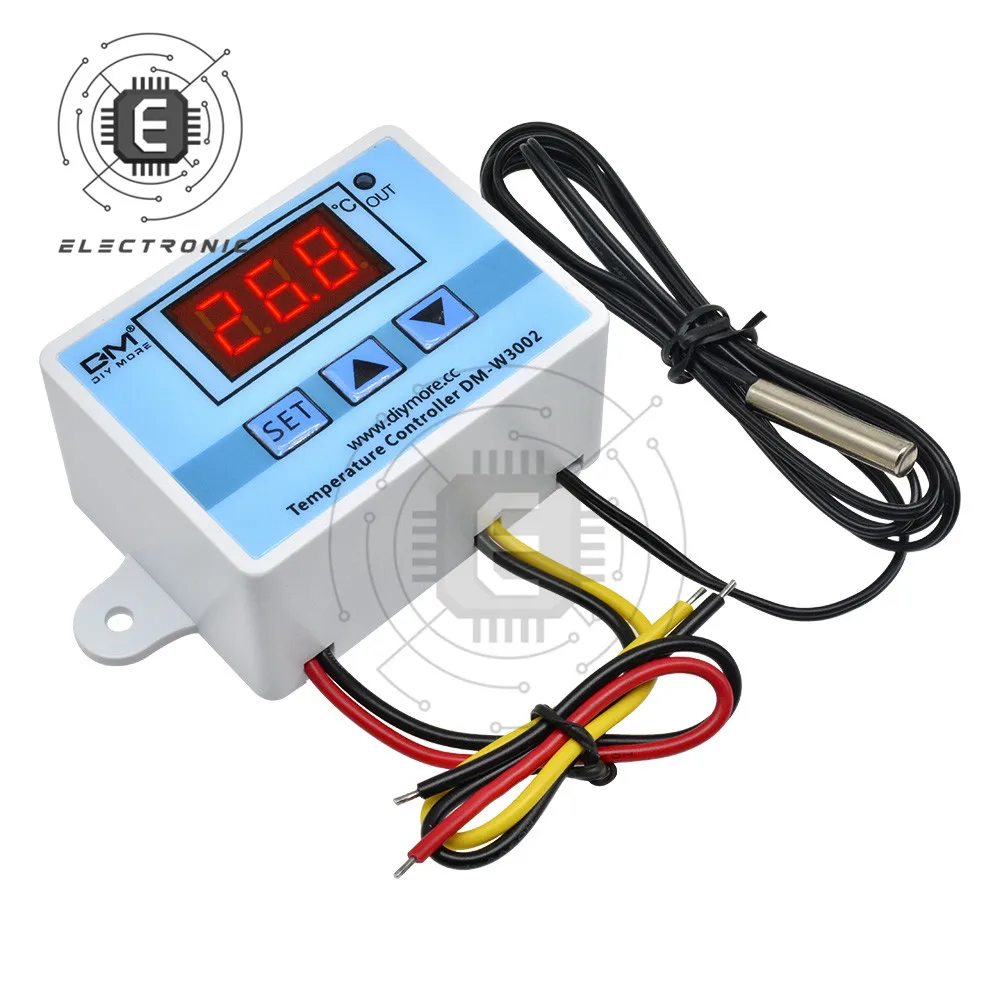

  W3002

  Temperature measurement range: – 50 ~ 110°C

  Temperature control range: – 50 ~ 110°C

  Temperature measuring accuracy: plus or minus 0.2 °C

  Temperature control precision: plus or minus 0.1 °C

  Measuring input: NTC10K L = 1 meters waterproof probe

  Input power: according to the classification of choice

  Output power: according to the classification of choice

  Appearance size: 60 * 45 * 31 mm

  This Temperature Controller come with 1meter waterproof sensor

  This item sensor use 2P plug, very easy to change, you also can choose more long sensor

  Feature:

  Heating/refrigeration modes, users can set the start/stop temperature freely;With large and clear LED display for better readability

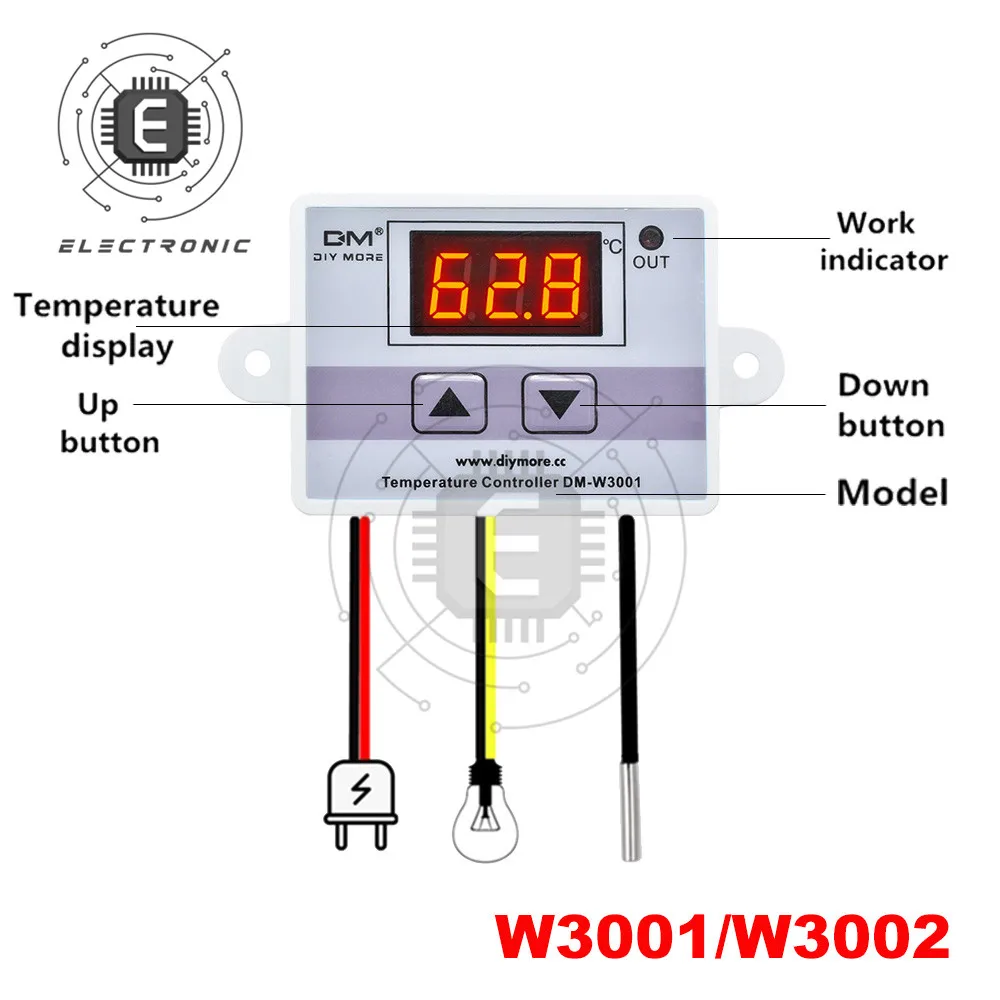

  Easy to use:Three buttons for easy operation, to set start temperature, stop temperature, corrected temperature, delay start time.

  Two Work Mode:Heating ( start temperature is less than stop temperature), Cooling ( start temperature is above than stop temperature)

  Applycation:Waterproof sensor, can be used to detect water or other liquid non-corrosive. objects temperature, for aquaculture,ornamental fish and other

  Operation Instructions:

  Set the start temperature; press the up button on one time to show the starting temperature, press the upper key for about 3 seconds, start temperature and digital flicker, and set the required temperature value through the upper and lower keys.

  Set the stop temperature: press the next button to show the stop temperature, press the key for about 3 seconds, stop the temperature, and digitally flicker, and check the required temperature value through the upper and lower keys.

  Restore factory setting: under the condition of electricity, at the same time hold down the upper and lower keys, the digital tube display 888 then automatically jump to the detection temperature, can restore the factory setting;

  Start temperature < stop temperature = heating mode

  Start temperature > stop temperature = refrigeration mode

  Prompt:

  When setting up the heating mode, if the temperature value is set upside down, the output indicator will not be lighted and the load will not work. If the above situation occurs after the completion of the setup, we can check whether the temperature value of the set is reversed.

  Notes:

  There are four models to choose from: the product is divided intoisolationversion and  normal version.

  The isolation version has one more transformerand the product performance is more stable.The transformer is an isolated power supply.

  The normal version isa capacitive solutionand the capacitive version isa non-isolated power supply.
•
•
