HAR-100 är NMEA0183 Kompatibel.

example：GARMIN GPSMAP 3010C m.m

Om denna produkt

• Dubbelkanal mottagare för snabb målsökning och uppdatering
• Mottar både klass A och klass B sändningar

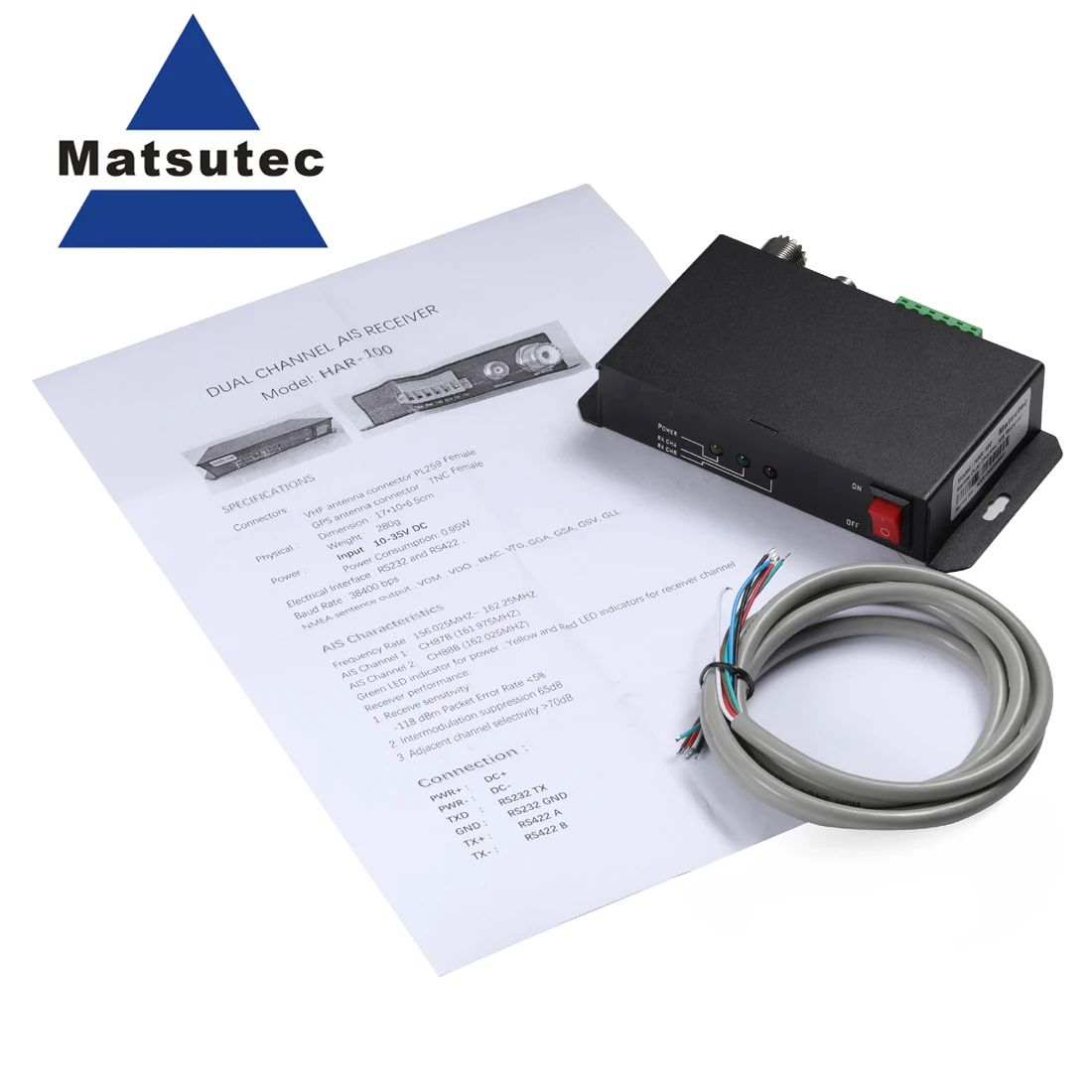

Matsutec HAR-100 Dual Channel AIS Receiver With RS232/ RS422 , GPS receiver
Modell : HAR-100
SPECIFIkATIONER

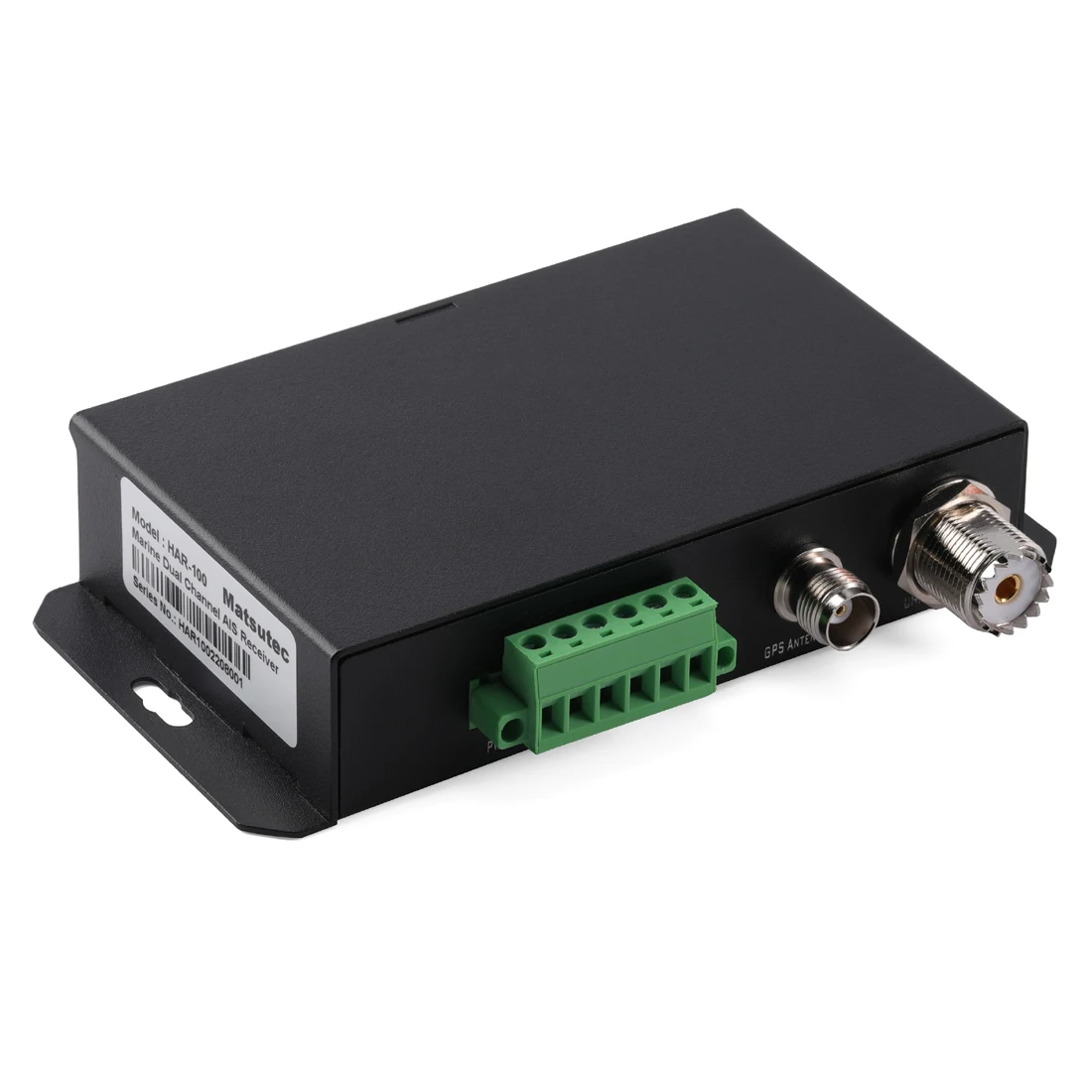

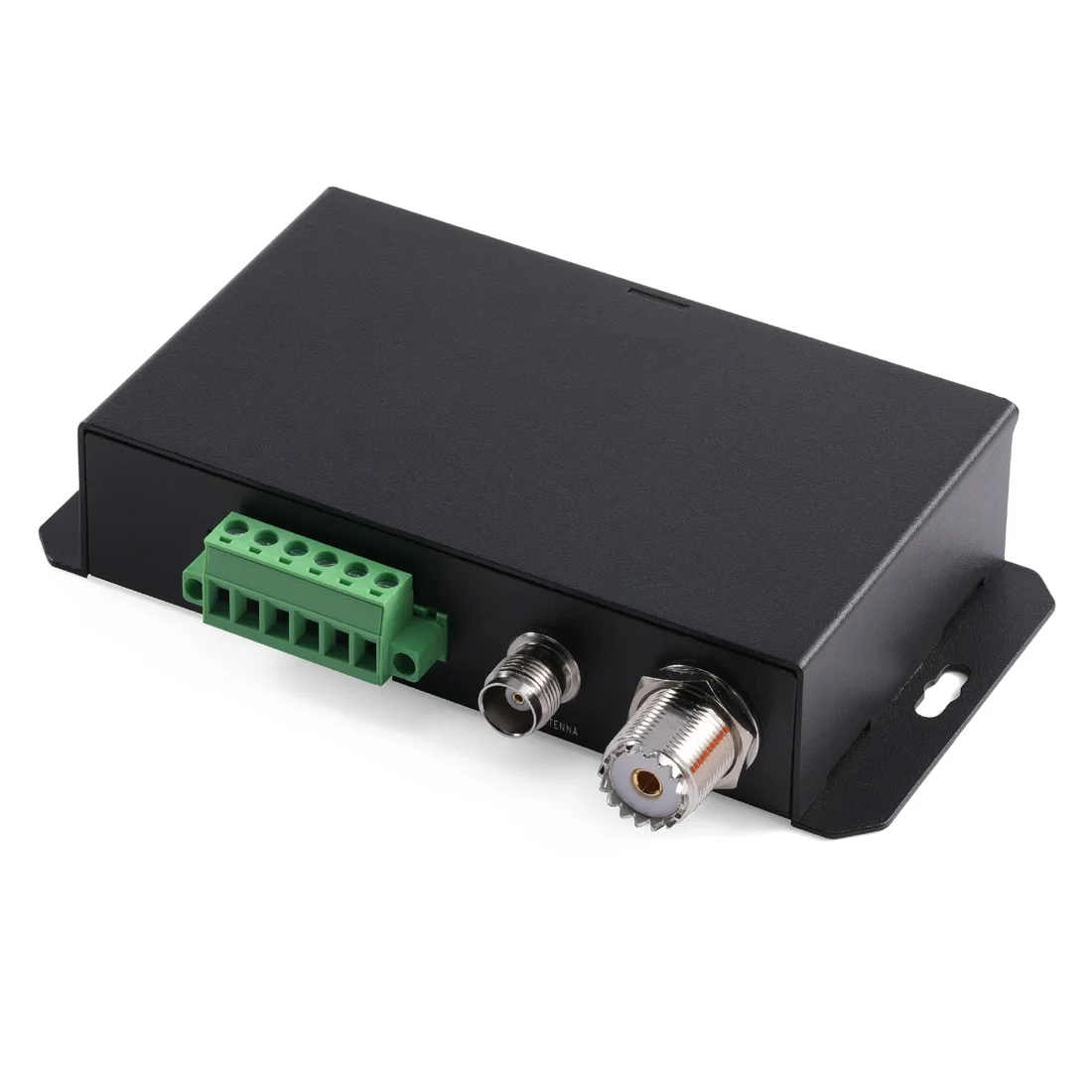

Connectors:VHF antenna connector PL259 Female
GPS antenna connector TNC Female
Power : Input 10-35V DC
Power Consumption: 0.95W
Electrical Interface : RS232 and RS422 ,
Baud Rate : 38400 bps
NMEA sentence output : VDM , VDO , RMC, VTG, GGA, GSA, GSV, GLL.
AIS Characteristics
Frequency Rate : 156.025MHZ~ 162.25MHZ
AIS Channel 1: CH87B (161.975MHZ)
AIS Channel 2: CH88B (162.025MHZ)
2 LED indicators for receiver channel
Receiver performance:
1. Receive sensitivity: -118 dBm Packet Error Rate <5%
2. Intermodulation suppression 65dB

3. Adjacent channel selectivity >70dB

sobre todo, de tener un multiplexer interno NMEA que permite entradas y salidas (4800 y 38400 bauds) es definitivo para permitir su conexión a consolas Raymarine C80 y similares.

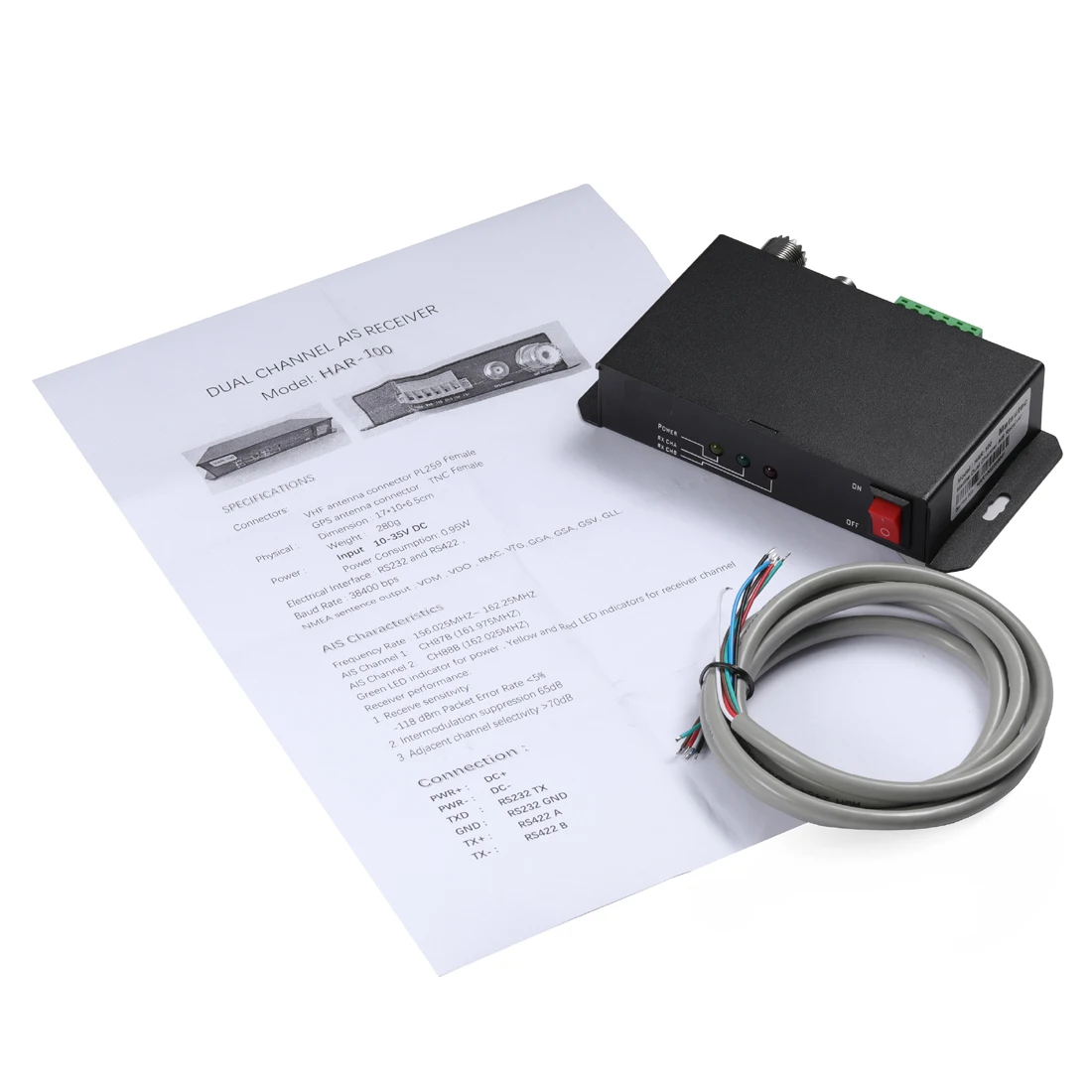

DUAL CHANNEL AIS RECEIVER

Model: HAR-100

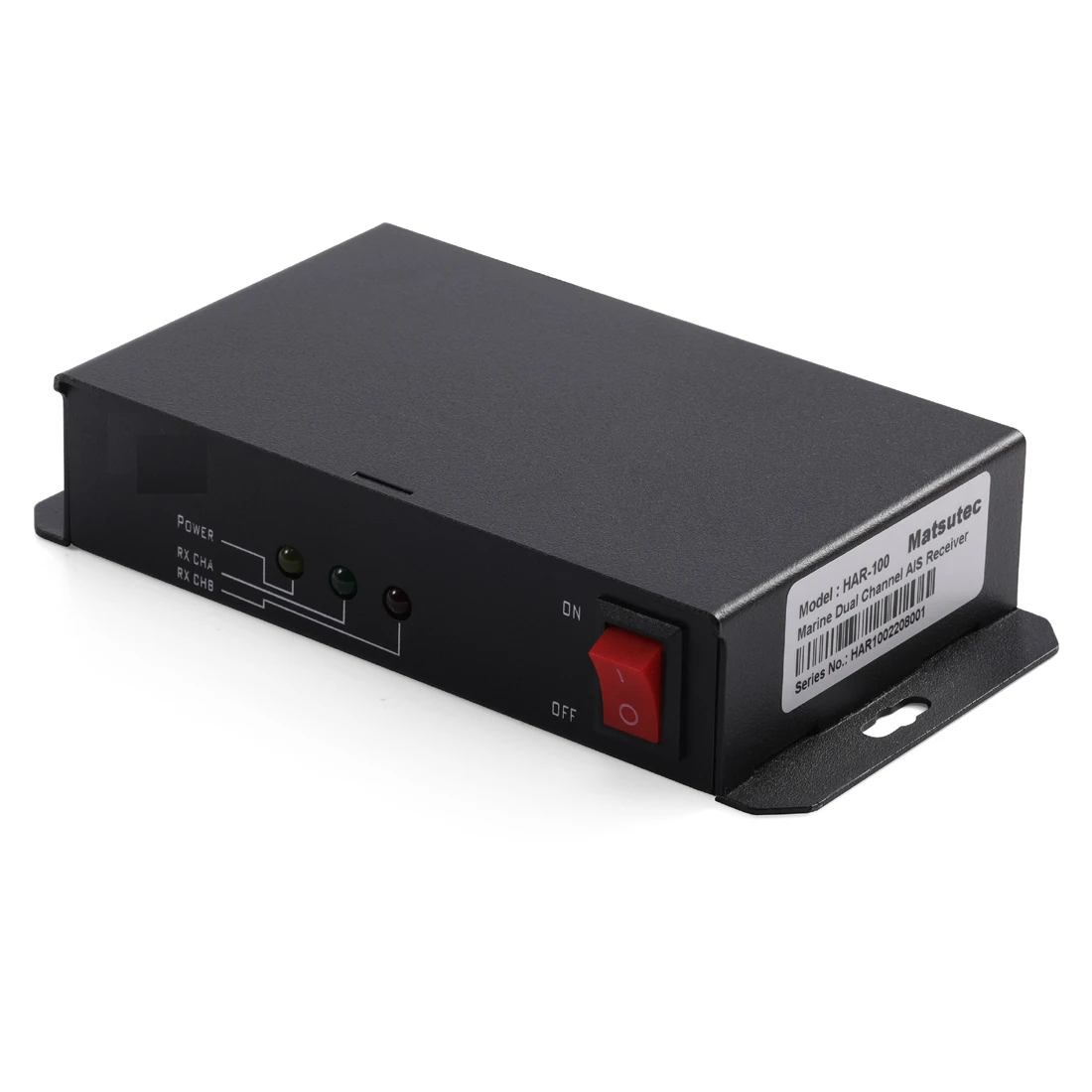

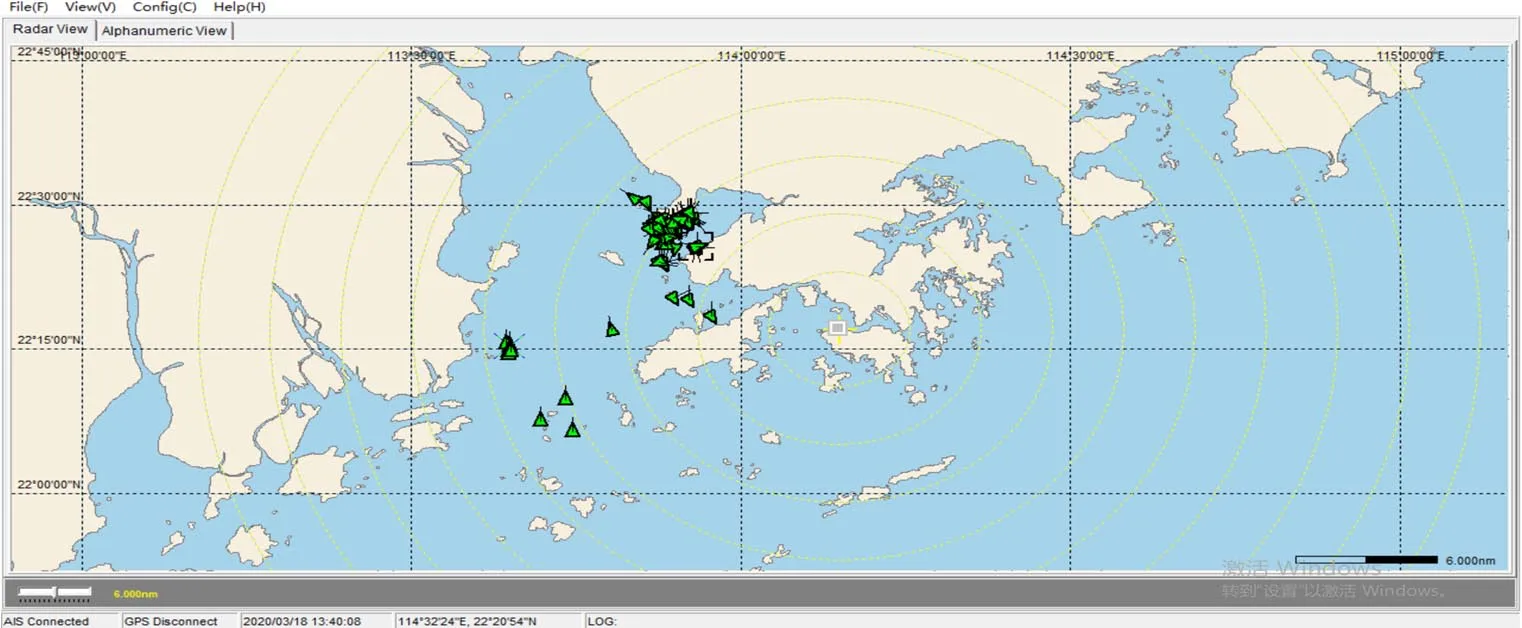

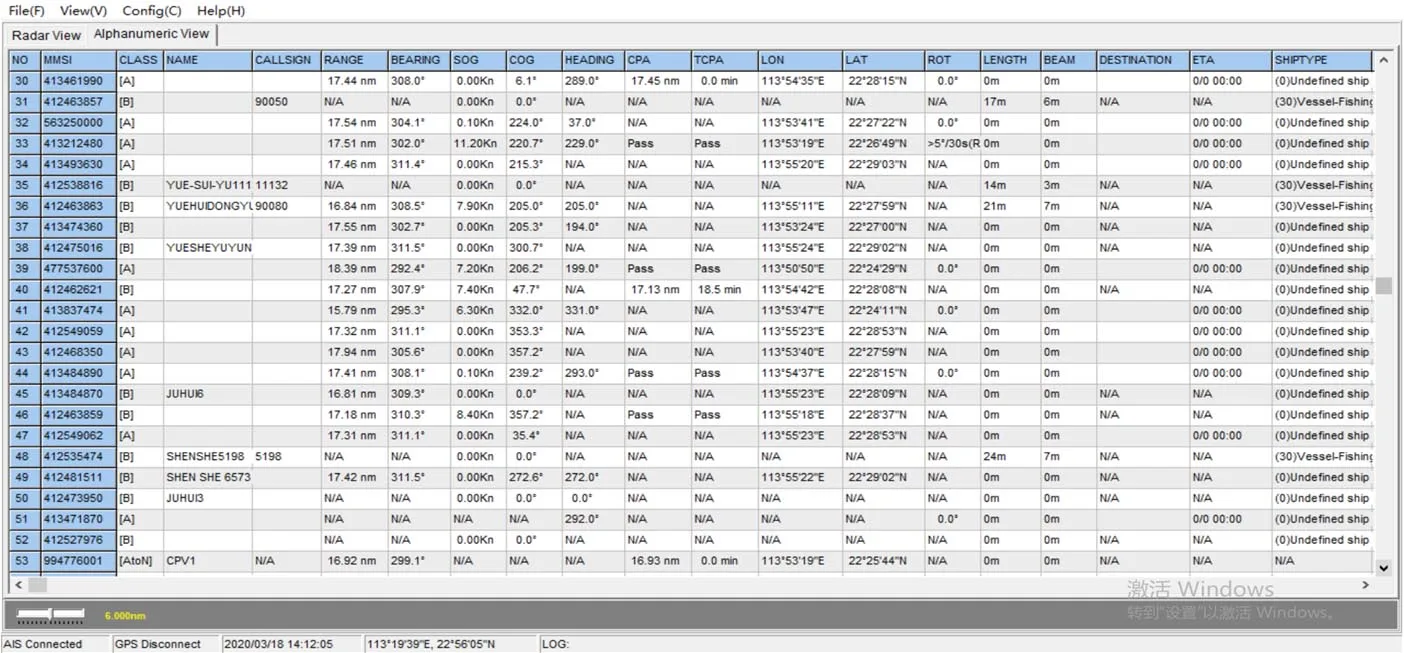

The Matsutec HAR-100is a low cost, dual-channel AIS receiver. It receives AIS navigation data from AIS-equipped vessels nearby and improves navigation safety. The HAR-100 is built with two parallel AIS receivers and GPS receiver in one box monitoring the default marine VHF AIS channels (161.975 and 162.025 MHz) with optimized sensitivity. Having the HAR-100 AIS receiver on boat, not only can monitor the status of the vessels in the surrounding area, but also can receive the dynamic information (position, speed, SOG, etc.), static information (ship name, MMSI, call sign, etc.), and voyage related information (cargo type, destination, etc.) from any vessels nearby that are equipped
with AIS transponders. You can connect the HAR-100 to NMEA standard chart plotters from ONWA , Raymarine, Garmin, Lowrance, Simrad and others, as well as USB devices such as navigation

SPECIFICATIONS

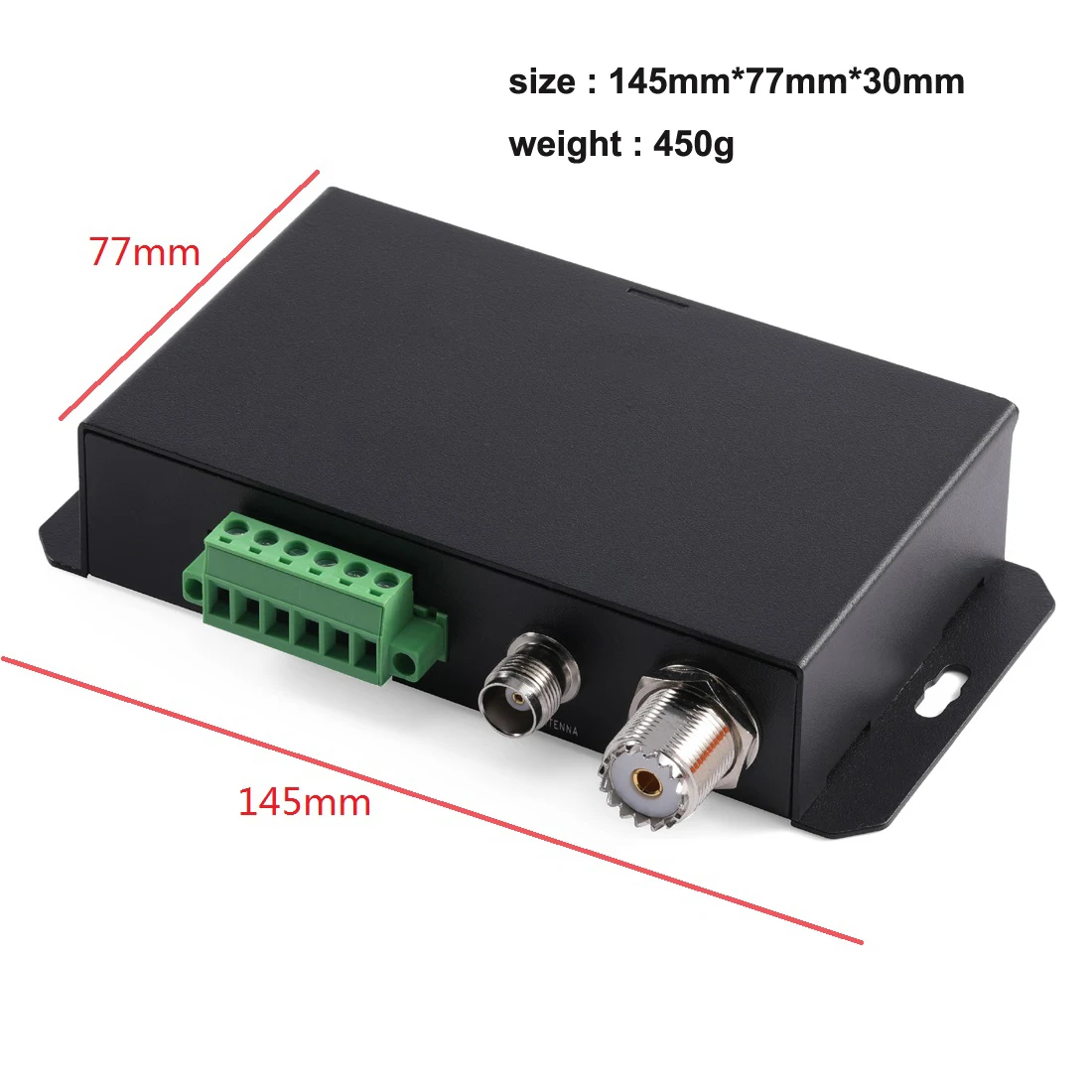

Connectors:

VHF antenna connector PL259 Female

GPS antenna connectorTNC Female

Physical :Dimension : 17*10*6.5cm

Weight : 280g

Power :Input10-35V DC

Power Consumption: 0.95W

Electrical Interface : RS232 and RS422 ,

Baud Rate : 38400 bps

NMEA sentence output : VDM , VDO , RMC,
VTG, GGA, GSA, GSV, GLL.

AIS Characteristics

Frequency Rate : 156.025MHZ~ 162.25MHZ

AIS Channel 1:CH87B (161.975MHZ)

AIS Channel 2:CH88B (162.025MHZ)

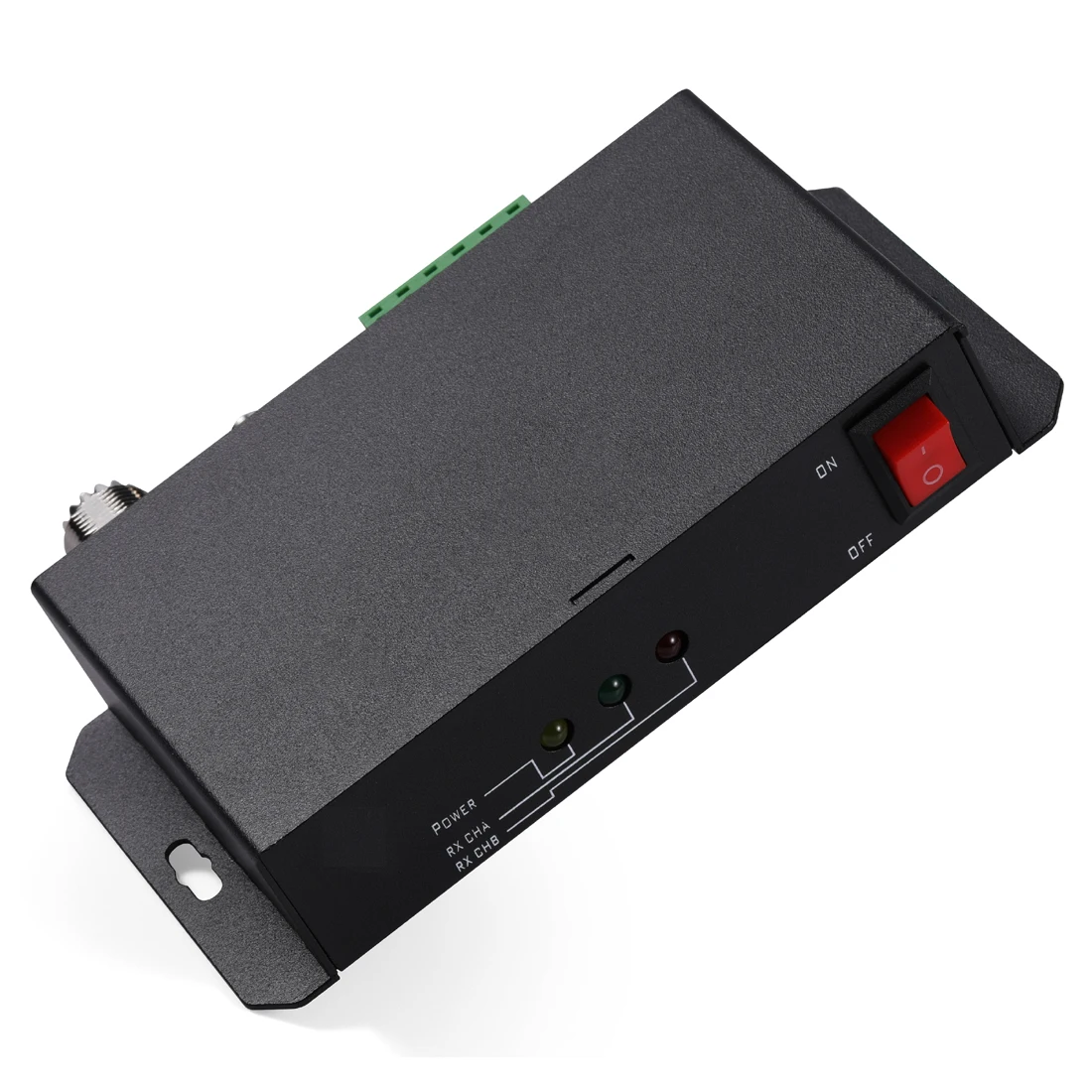

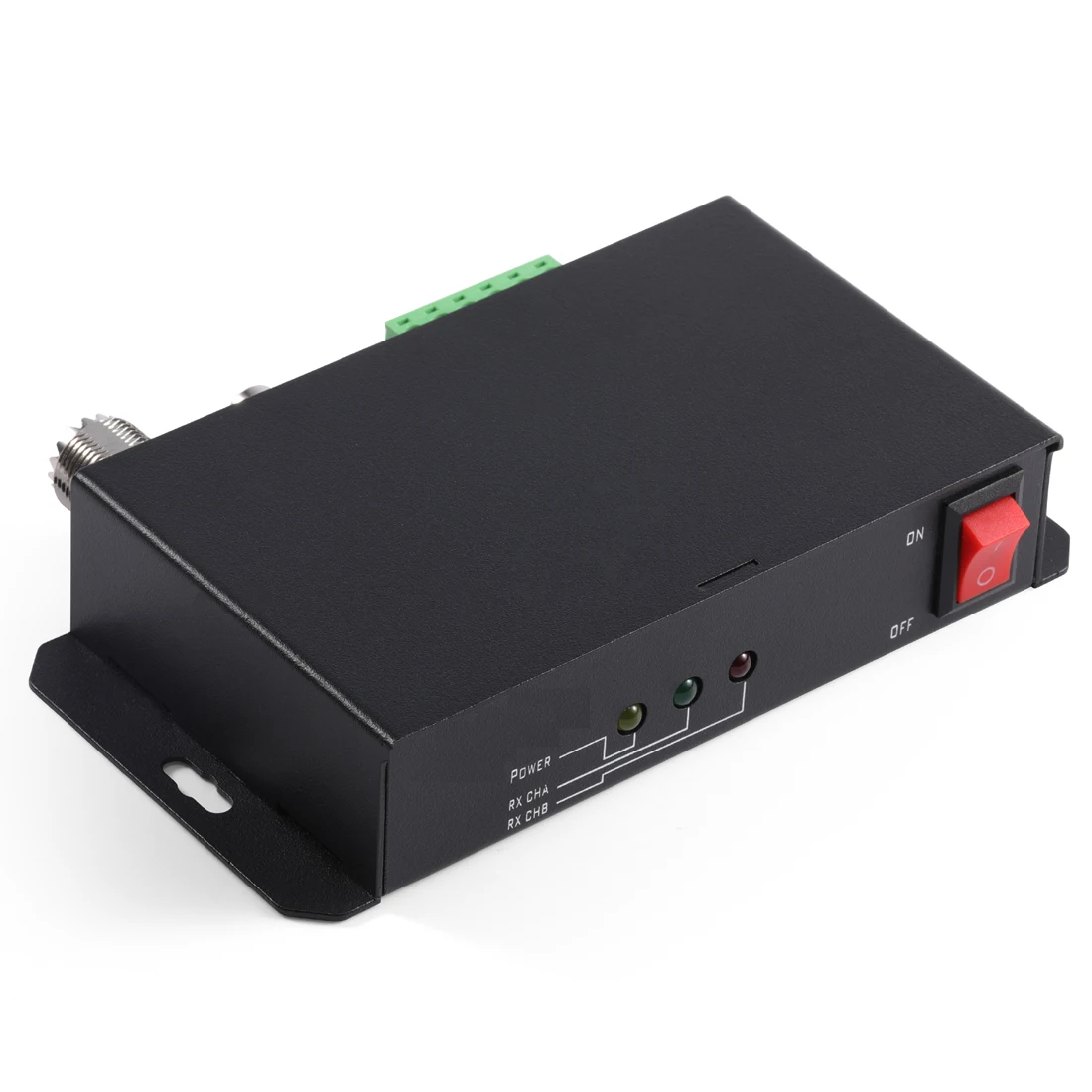

Green LED indicator for power , Yellow and
RedLED indicators for receiver channel

Receiver performance:

1. Receive sensitivity:

-118 dBm Packet Error Rate <5%

2. Intermodulation suppression 65dB

3. Adjacent channel selectivity >70dB

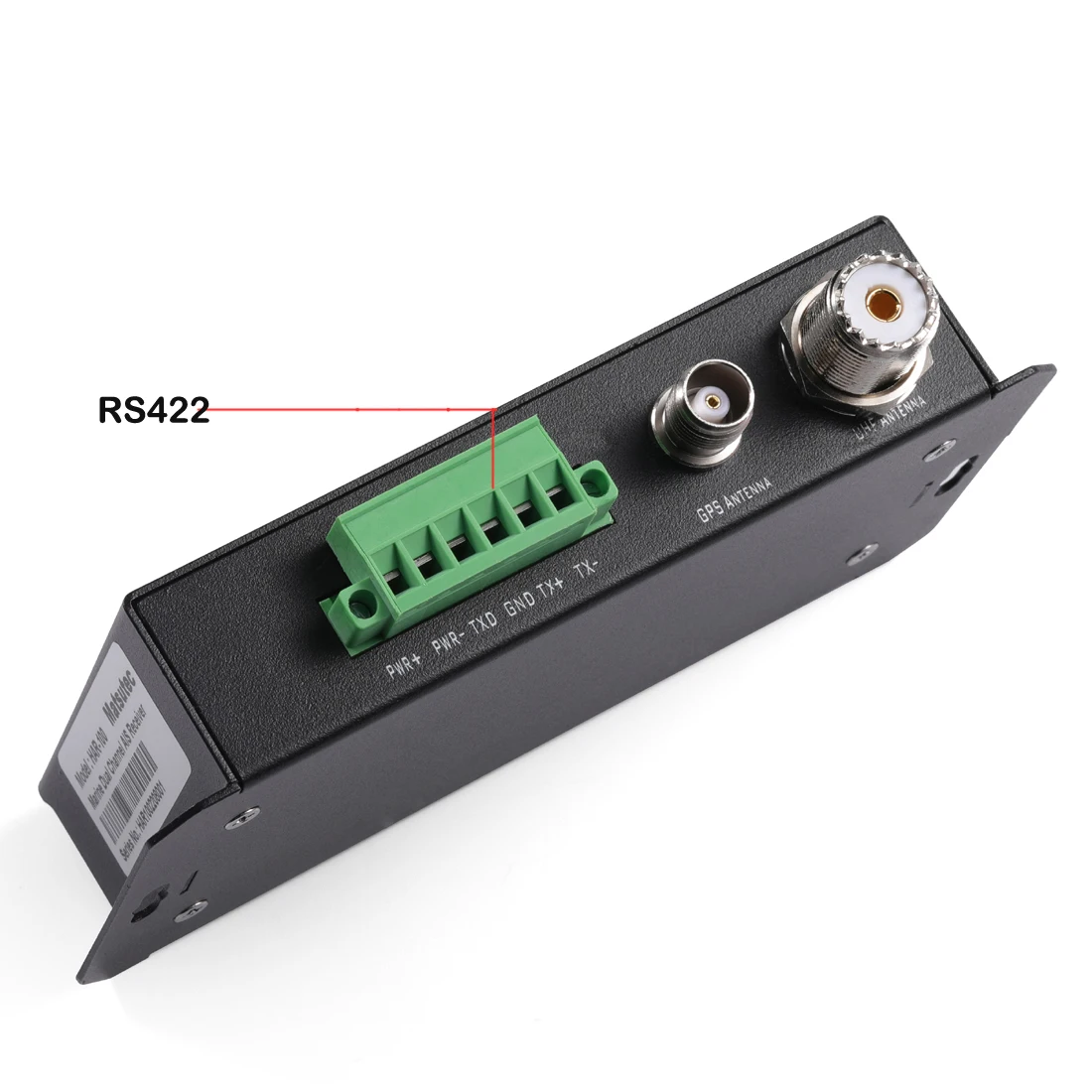

Connection :

PWR+ :DC+

PWR- :DC-

TXD:RS232 TX

GND :RS232 GND

TX+ :RS422A

TX- : RS422B
